PPD-BPFCR500

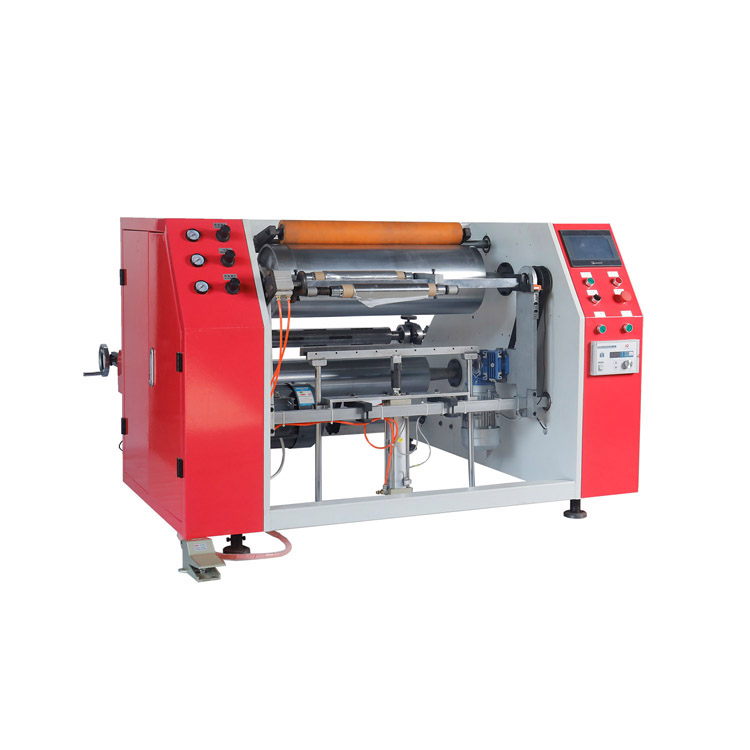

Semi auto baking paper aluminium foil cling film stretch film rewinder (4 in 1)

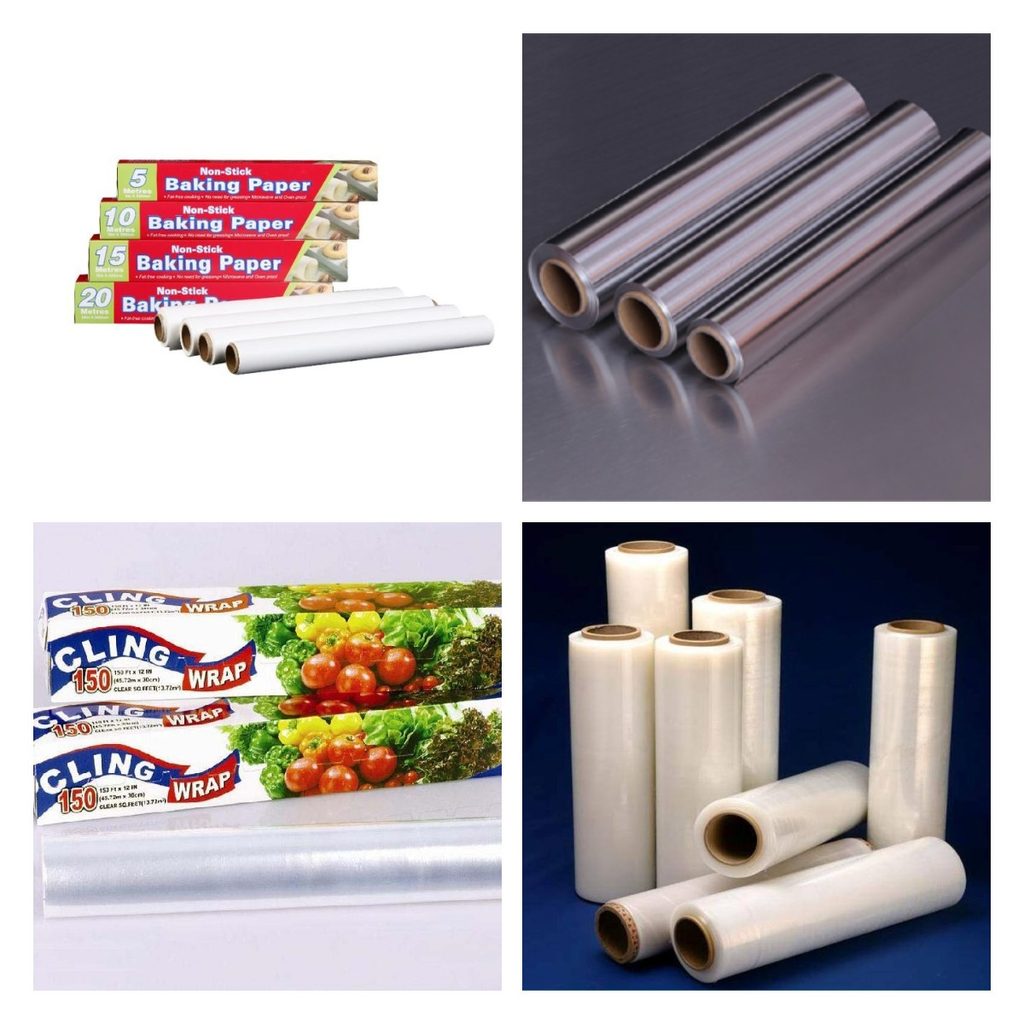

is specifically designed for rewinding four commonly used flexible roll materials: baking paper , aluminum foil, PE/PVC cling film, and stretch film.
Whether for catering packaging, food preservation, or industrial logistics wrapping, this machine can efficiently and accurately rewind large rolls to small rolls, making it an ideal choice for small and medium-sized processing plants, packaging workshops, and family workshops.
Features:
- The unwinding shaft uses an air shaft, making loading and unloading convenient and shortening the time for changing the master roll.
- A 7-inch LCD color touch screen + PLC programmable logic controller constitutes a user-friendly human-machine interface (HMI).
- The inner diameter of the finished paper roll core can be freely selected (30/35/38/40/50/76mm) to meet the needs of different end customers.
- The rewinding length can be set from 1 to 300 meters, and the machine will automatically stop when the preset length is reached, facilitating mass production.
Main Data：
Name: Semi Auto Baking Paper Aluminium Foil Cling Film Stretch Film Rewinder
Model:PPD-BPFCR500
Model:Rewind material:baking paper / aluminium foil /
cling film / stretch film
Jumbo roll core diameter:76mm
Jumbo roll width:max500mm
Jumbo roll weight:max 200kg
Finsihed roll width:max500mm
Finsihed roll paper core ID:30/35/38/40/50/76mm option
Finished product roll length:max300meters
Design speed:0-150m/min adjustable
Total power:2.5kw
Pneumatic supply:0.2Mpa
Voltage:220/380/415V,50Hz(option)
