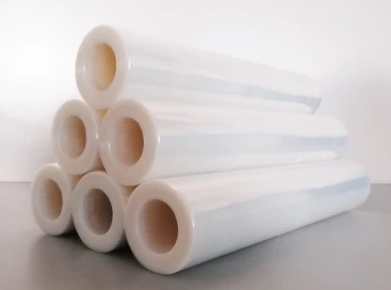

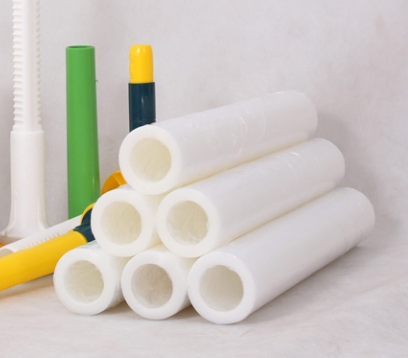

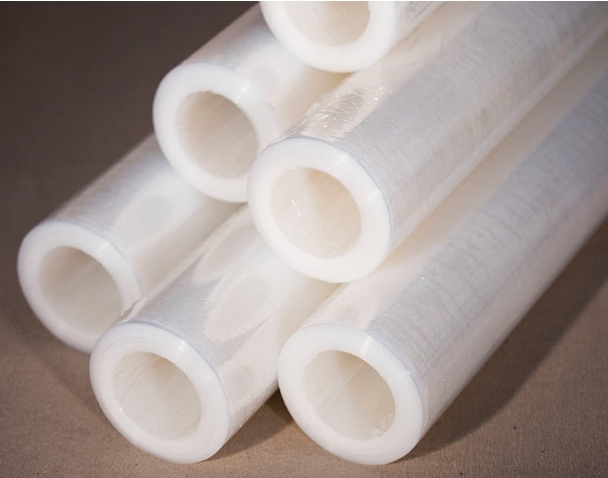

Automatic coreless stretch film rewinder is special design industrial model to convert jumbo rolls of stretch film into smaller, ready-to-use rolls without paper cores or plastic cores. Machine is suit for different materials of stretch film,such as PE stretch film,LLDPE stretch wrap film,LDPE stretch film etc.
Features:
1.Touch screen and PLC controls,easy for data setting.
2.It integrates photoelectric sensors, electrostatic adsorption and heat wire cutters to automatically change over rolls without stopping the jumbo roll.
3.Two shafts automatic roll exchanging,automatic pushing out the finished product to the receiving table.
4.Different inner diameter can be choose,2inch,3inch option.
Main Data:

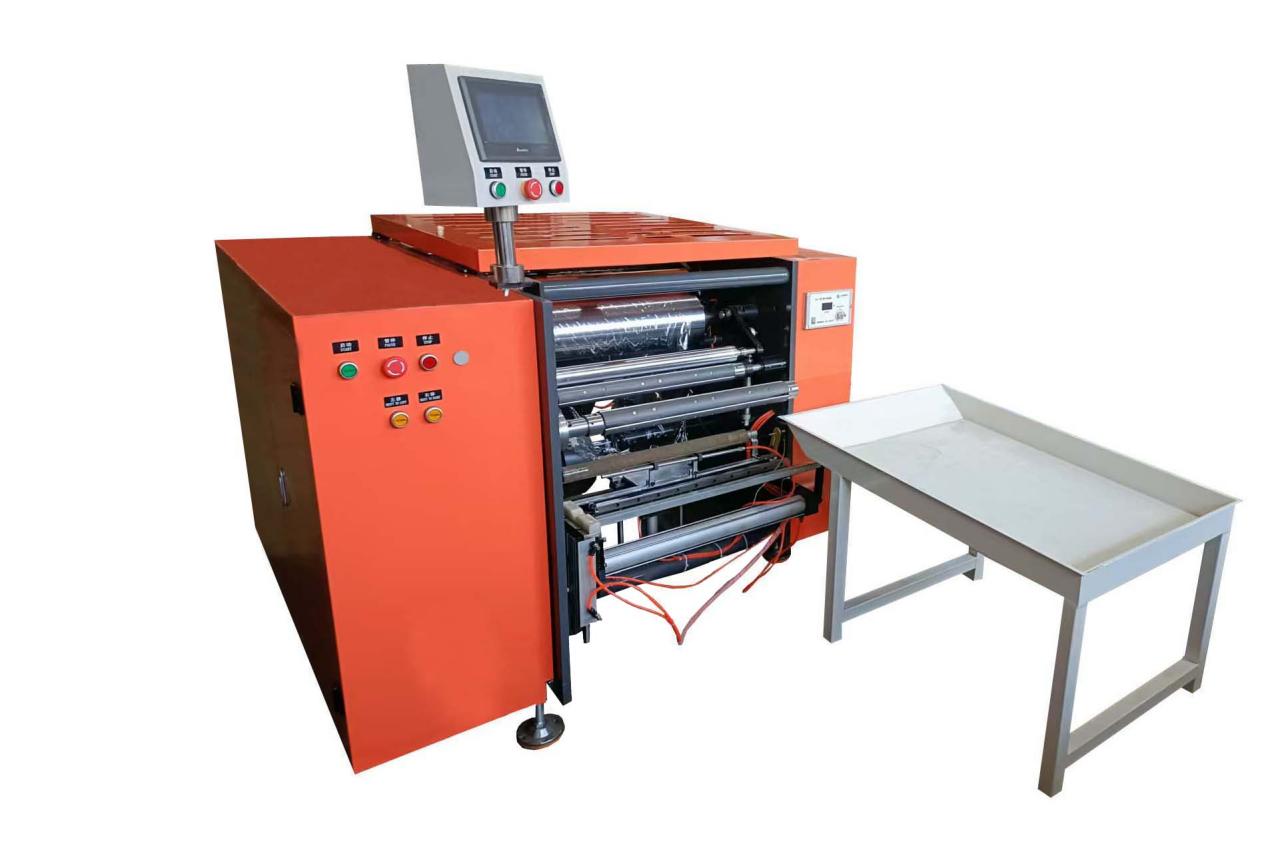

Name:Automatic Coreless Stretch Film Rewinder
Model:PPD-CSFR500
Jumbo roll width:500mm
Jumbo roll ID:3inch(76mm)
Jumbo roll OD:max500mm
Rewinding roll width:max500mm
Rewinding roll ID(without core):2inch/3inch(50/76mm) option
Rewind roll length:max400m
Design speed:max500m/min
Total power:4.37kw
Air supply:0.3Mpa
Voltage:220/380/415V,50Hz
