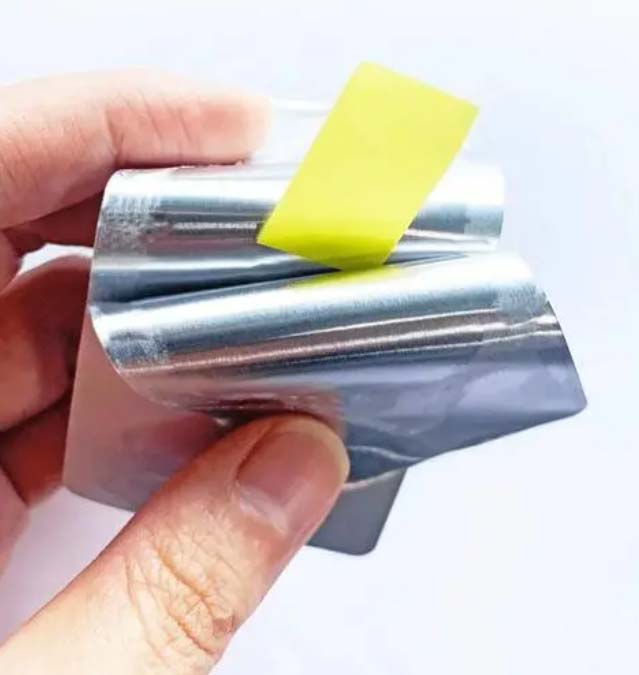

Oral dissolving film is a new type of solid rapid-release preparation for oral mucosal absorption. It is a film-like preparation made by processing raw materials and suitable film-forming materials (mostly polymers). Its appearance is similar to a thin “film”, the size of a stamp, and the drug ingredients are evenly distributed in the soluble matrix. The patient puts the oral dissolving film on the oral mucosa or under the tongue. The user can take it without drinking water. It can dissolve quickly on the tongue and swallow it with normal swallowing movements, thereby achieving the rapid release of one or more active ingredients of the drug.

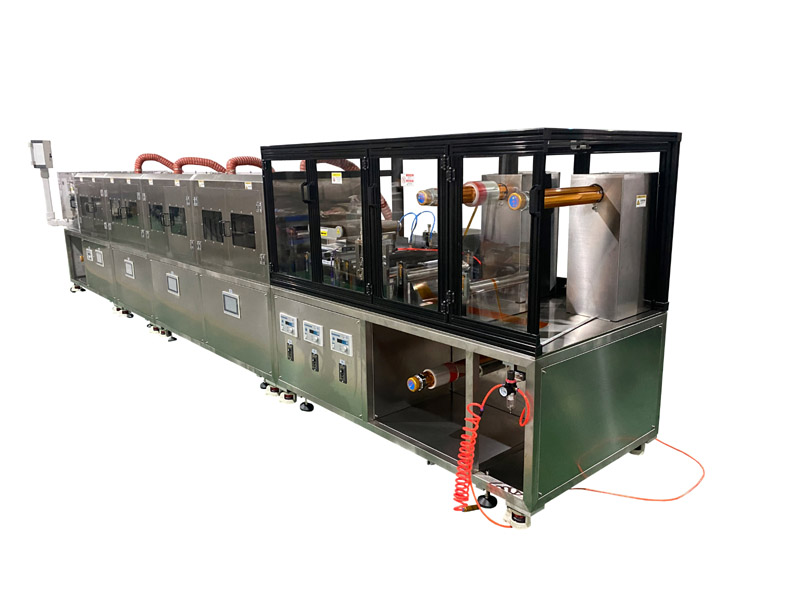

Oral dissolving film production line is consist of oral dissolving film coating machine and oral dissolving film packaging machine.

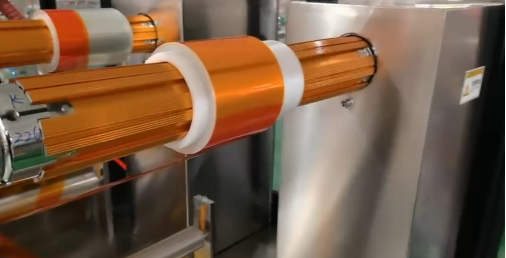

I. Oral dissolving film coating machine
The stirred and defoamed oral dissolving film liquid is transported or introduced into the “oral dissolving film liquid tank” of the coating machine to start film making.
Features:
1.Independent oven (hot air circulation drying): segmented temperature control is adjustable.
Precision coating roller is used for coating and metering.
Main Data:
Model: PPD-OTFM-320
Coating width: Maximum width 320mm,
Coating thickness: 0.02-0.1mm
Coating speed: 0.01-1m/min
Total power: 220V,50Hz,26KW
II, Oral dissolving film packaging machine
Load the rolled oral dissolving film coil onto the “oral dissolving film coil fixed shaft” of the packaging machine.
Features:
The orodissolving film slices enter the packaging bag directly after slicing, which is stable and reliable.
The heat sealing time is adjustable, and the heat sealing effect is better.
Main Data:
Model: PPD-OTFPM120
Film size: L:30 mm × W :25 mm
Bag size: L:85 mm × W: 45 mm
Processing capacity: 120-160 bags/min
Total power: 220V, 50Hz ,7KW
