Model:PPD-AFRL450
Automatic aluminium foil rewinder with auto label sticker machine is a four-station turret rewinding machine with an integrated automatic labeling system. Its core function is to rewind large rolls of aluminum foil or silicone paper into finished rolls of a specific length at high speed and with precision. After the rewinding process, it automatically affixes labels to each finished roll, ultimately achieving fully automated and uninterrupted production from raw materials to ready-to-store products.
Features:

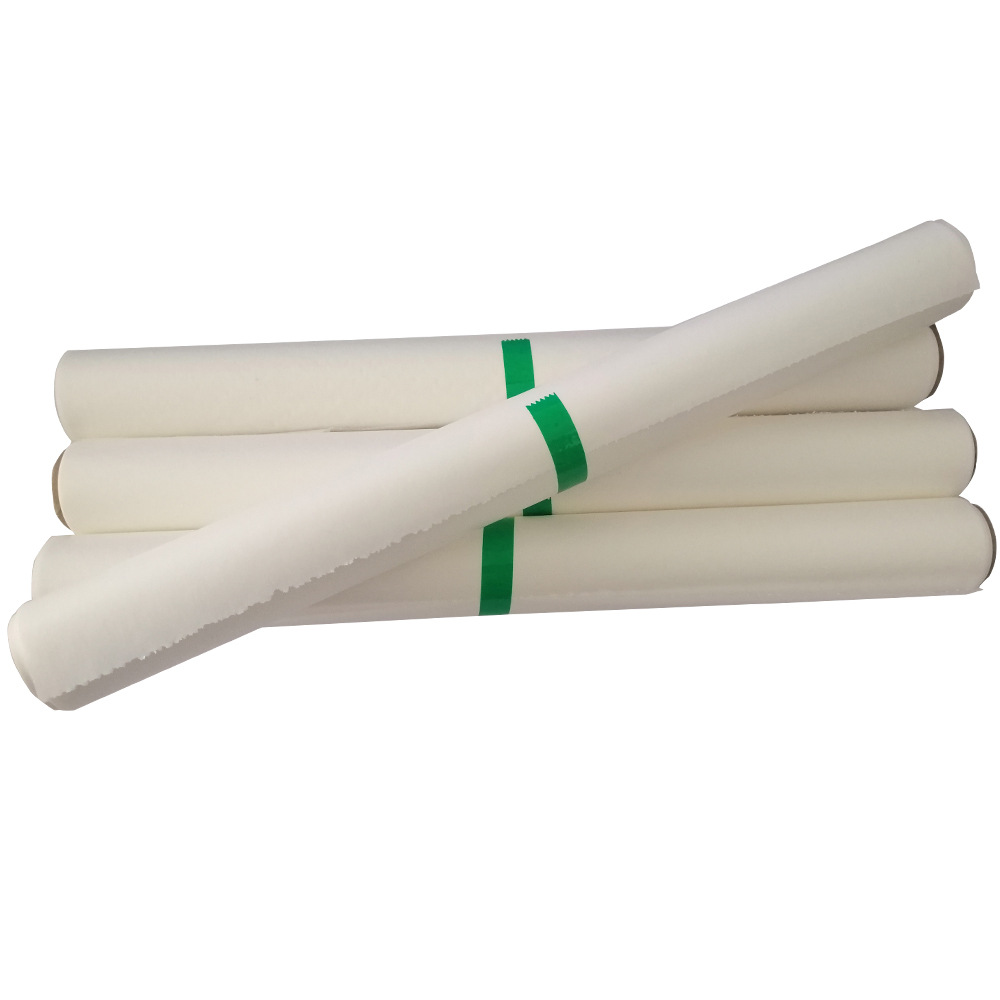

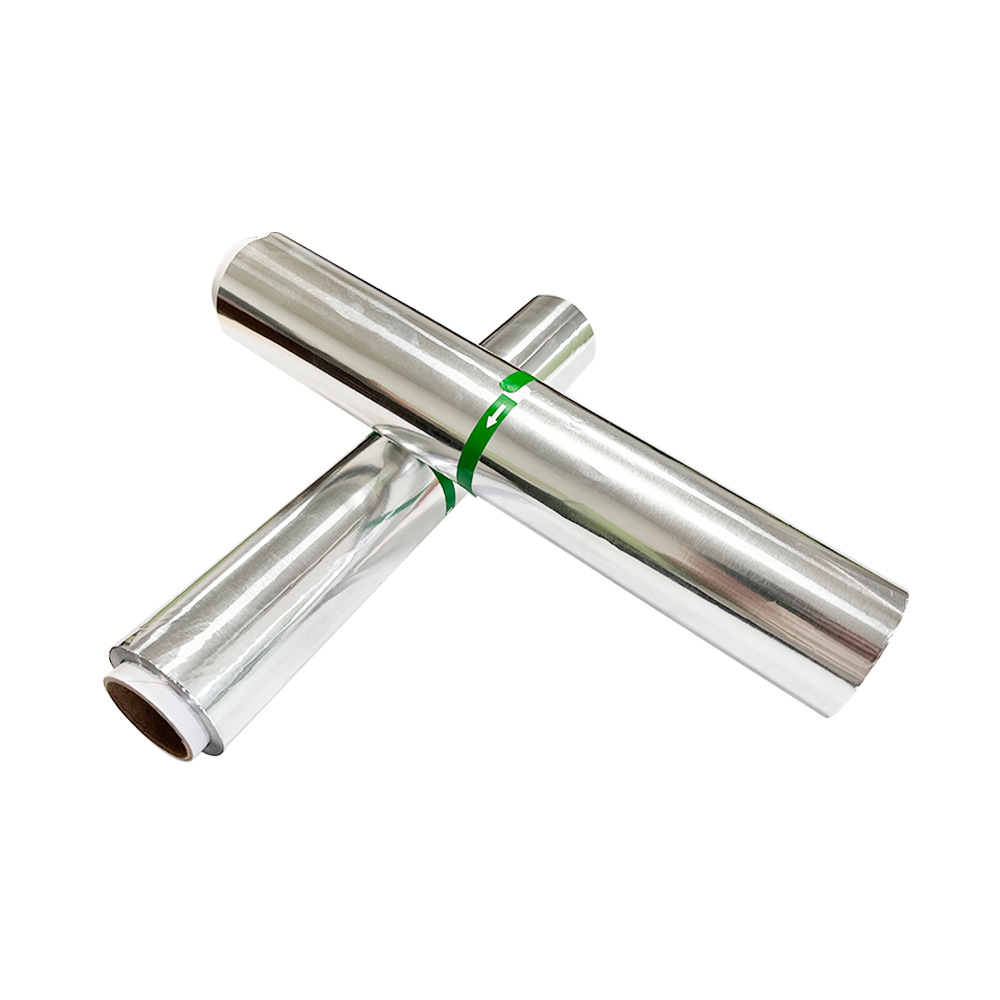

1.Machine is specifically designed to produce small aluminum foil, kitchen foil, and household foil rolls with a label sticker. It can be used for baking paper, wax paper and silicon paper rolls also.
2.Four shaft rewinding system which allows for rewinding length up to 100 meters, automatic paper core change system for simple operation.
Technical Data:
Name: Automatic Aluminium Foil Rewinder With Auto Label Sticker Machine
Model:PPD-AFRL450
Jumbo roll width:max450mm
Jumbo roll diameter:800mm
Jumbo roll core diameter:76m option
Product roll core diameter:30/35/38mm option
Product roll length :3-100mm option
Production speed:max150/min
Magnetic powder braker:25NM
Magnetic powder clutch:12NM
Total power:4kw
Voltage:220/380/415V,50Hz(option)
