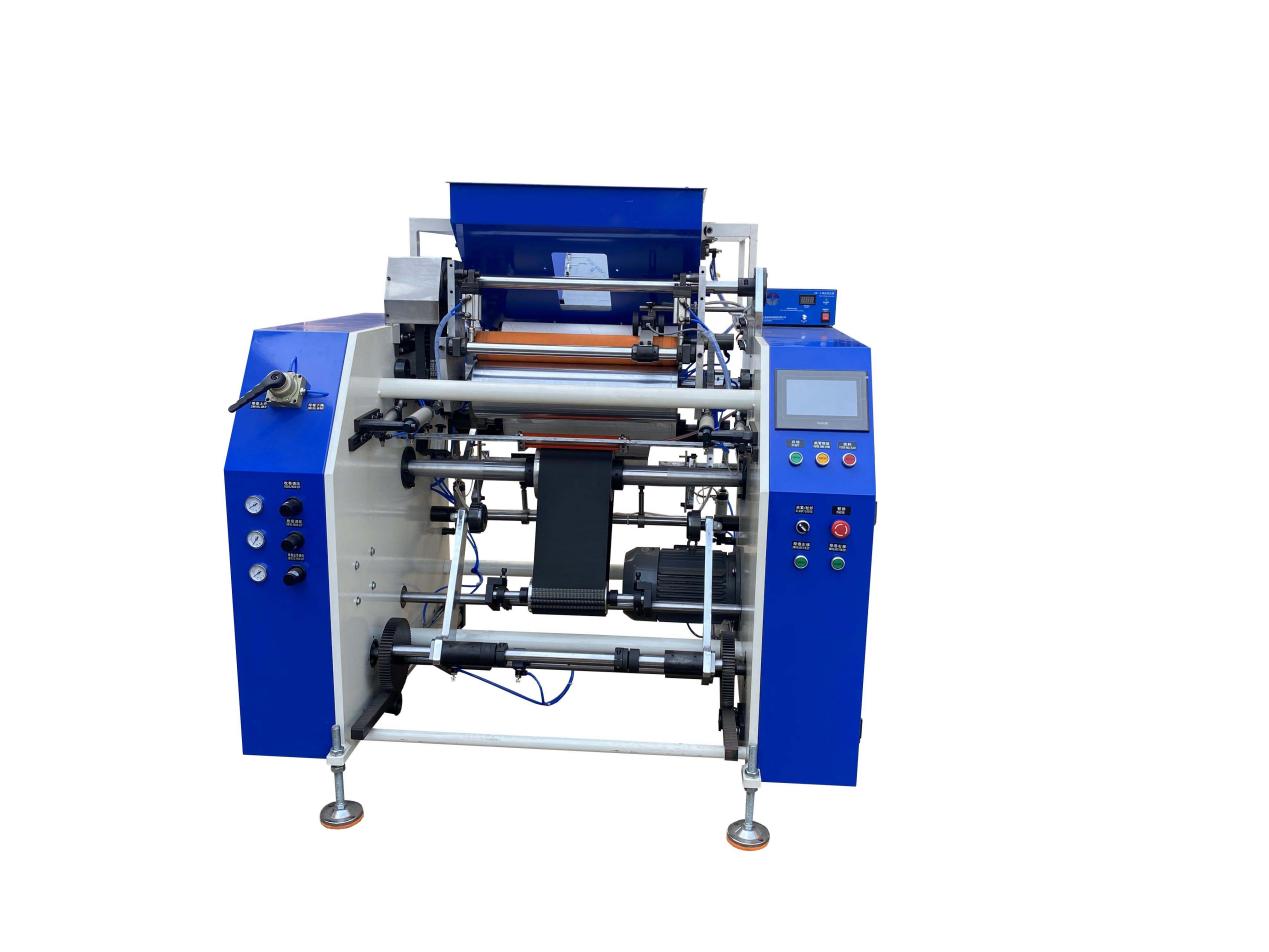

Automatic 4 shaft stretch film rewinder is an ultra-high-efficiency rewinding device with four independent rewinding exchange stations.Through precise program control, it realizes automatic switching,stretch film cutting, overlapping between stations and can rewind the jumbo roll of stretch film into small rolls for non-stop production,it improves the production more than 50% than the market conventional model.
Features:
- Four winding stations operate in a cyclical manner, achieving true “non-stop” production, with overall efficiency 30%-50% higher than dual-station models.
- Machine integrates automatic core feeding, film cutting, automatic rewinding and finished product unloading functions, only one operator to replenish paper cores and jumbo rolls for continuous production.
- The machine uses surface winding to ensure neat winding of the stretch film.
- Different winding lengths can be quickly switched via the touchscreen, making operation simple.

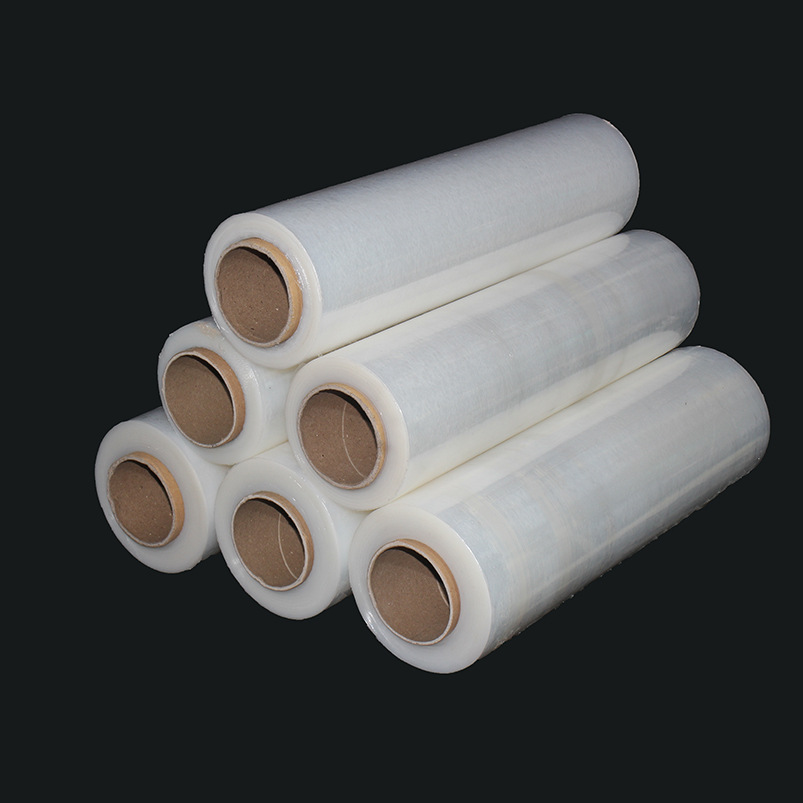

5.Suitable material:stretch film,PE/PVC cling film,industrial stretch film etc.
Main Data:
Name: Automatic 4 Shaft Stretch Film Rewinder
Model: PPD-4SH500
Mother roll width: 500mm
Mother roll outer diameter: max500mm
Mother roll inner diameter: 3inch
Rewinding roll width: 500mm
Rewinding roll inner diameter: 1.5/2/3inch
Rewinding roll length: max600meter
Machine design speed: max900m/min
Total power: 5kw
Voltage: 220/380/415/450V,50Hz
